CRI 90+SDCM ≤3
ESSENTIAL WATERPROOF COB LED Strip Static White 3.0 W/ft 24V 8 mm IP67 · 85 chips/ft
ESSENTIAL WATERPROOF COB LED Strip Static White 3000K 3.0 W/ft 24V 8 mm IP67
SKU ES-COB85-P030-24V-3K-IP67-08-32FT
CRI 90+SDCM ≤3
24V COB strip, 85 chips/ft, 3 W/ft, CRI 90+, 8 mm wide, IP67. Cuts every 1.97" and runs 32.8 ft from a single feed.
LED Type
COB
Voltage
24V
CCT
2700K–6500K
CRI
90+
Brightness
259 lm/ft
Rating
IP67
Color Temperature
Quantity
Pricing
Price on request
259 lm/ft · 85 lm/W · 32.8 ft reel
Collect every SKU for the job in your project list and send it as one request — we reply within one business day with pricing and lead time.
Specifications
Technical Detail
Photometry by color temperature
| CCT | lm/ft | lm/W | SKU |
|---|---|---|---|
| 238 | 78 | ES-COB85-P030-24V-27K-IP67-08-32FT | |
| 259 | 85 | ES-COB85-P030-24V-3K-IP67-08-32FT | |
| 274 | 90 | ES-COB85-P030-24V-4K-IP67-08-32FT | |
| — | — | ES-COB85-P030-24V-5K-IP67-08-32FT | |
| 290 | 95 | ES-COB85-P030-24V-65K-IP67-08-32FT |
“—” = photometry for that build is not published yet; request it with your quote.
Reading the SKU
- ESSeriesESSENTIAL
- COB85LED & densityCOB, 85 chips/ft
- P030Power3.0 W/ft
- 24VVoltage24V DC
- 3KCCT3000K
- IP67ProtectionIP67
- 08Width8 mm
- 32FTLength32.8 ft (10 m)
Light Quality
- CRI
- 90+
- CCT
- 2700K · 3000K · 4000K · 5000K · 6500K
- Color Mode
- Static White
- LED Type
- COB
Electrical
- Voltage
- 24V
- Watts per ft
- 3 W/ft
- Lumens per ft
- 259 lm/ft
Physical
- Strip width
- 8mm
- LED density
- 85 chips/ft
- Cuttable length
- every 1.97"
- Max run length
- 32.8 ft
- Reel lengths
- 32.8 ft
- IP rating
- IP67
Build
- Series
- ESSENTIAL
- Protection
- Silicone Filling
- Beam angle
- 138.4°
- Feed
- Single-end power feed
- SDCM
- ≤3
Other
- Recommended use

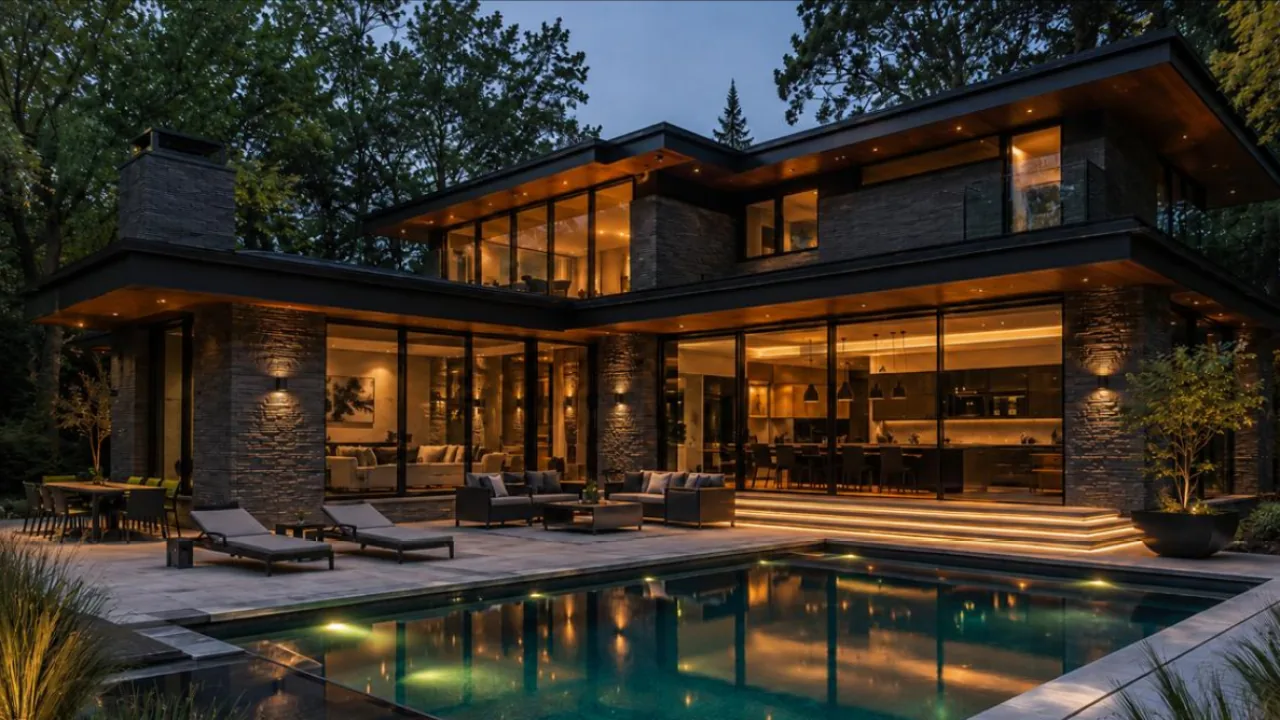

- Bathroom & Vanity · Landscape & Outdoor Living · Deck, Step & Path Lighting · Facade, Wall Wash & Grazing
