LED Channels · Inside / Outside Corner
Outside Corner Aluminum LED Channel 10.5 × 14 mm — 6.56 ft (2 m)
Outside Corner Aluminum LED Channel 10.5 × 14 mm — 6.56 ft (2 m) · Silver Anodized
SKU AC-OC-08-10514-S
Inside / Outside Corner aluminum channel, 10.5 × 14 mm. Takes LED strip up to 8 mm wide.
Rating
IP20
Mount
Inside / Outside Corner
Diffuser
Diffused
Length
6.56 ft (2 m)
Finish
Cover: PC Diffuser (white)
Quantity
Pricing
Price on request
Collect every SKU for the job in your project list and send it as one request — we reply within one business day with pricing and lead time.
Accessories for this channel
Beyond what is in the box. Added to your project list against AC-OC-08-10514-S (Silver Anodized); we confirm part numbers with the quote.
- End cap0
- End cap with cable hole0
Specifications
Technical Detail
Reading the SKU
- ACFamilyAluminum channel
- OCCategoryOutside Corner Channel
- 08Strip class8 mm
- 10514ProfileCross-section W × H in mm, decimal points dropped
- SFinishSilver anodized
Physical
- Profile length
- 6.56 ft (2 m)
- IP rating
- IP20
Build

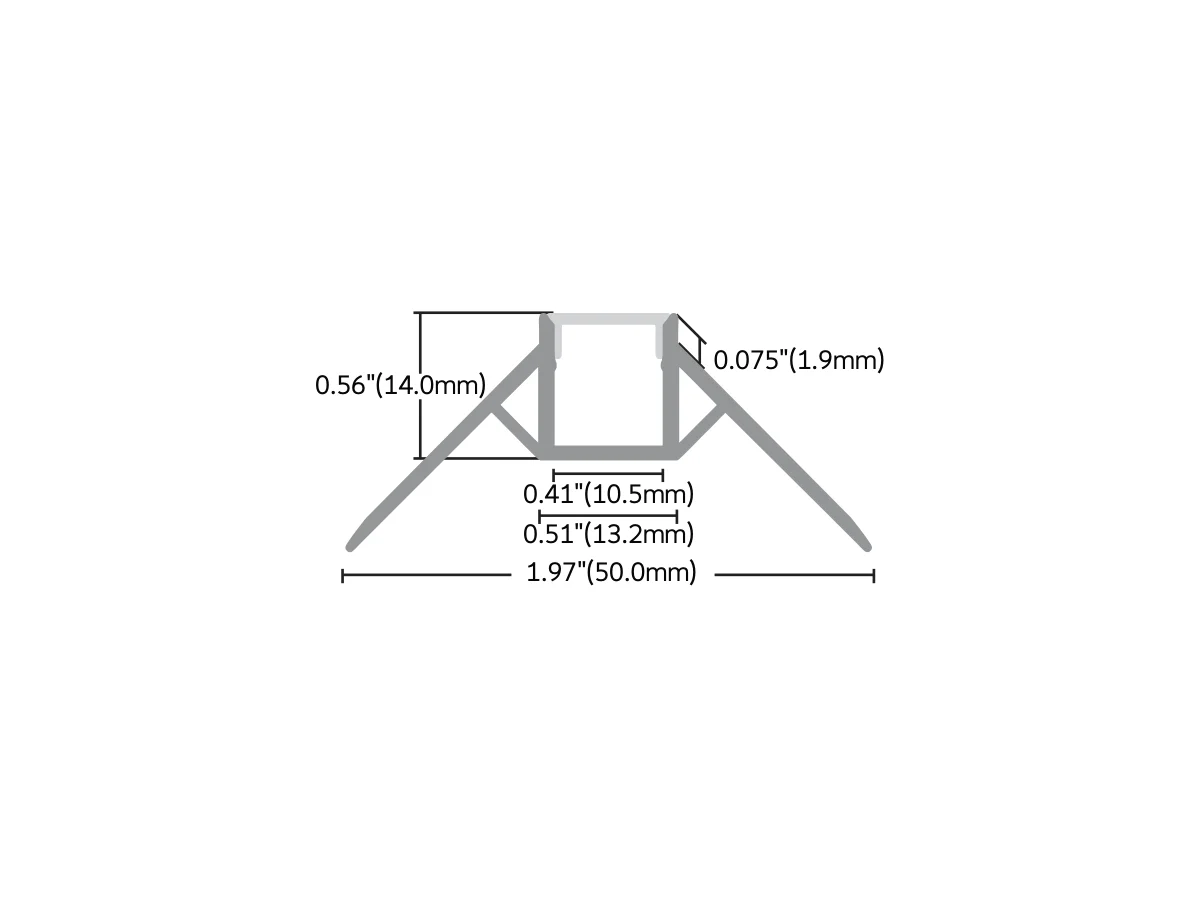

- Cross-section (W × H)
- 10.5 × 14 mm (0.41 in × 0.55 in)
- Fits
- LED strip up to 8 mm (0.31 in) wide
- Installation
- Inside / outside corner
- Alloy
- 6063-T5 aluminum
- Finishes
- Silver Anodized · Black
- Cover
- PC Diffuser (white)
- In the box
- 1 PC cover + 2 end caps
- Accessories (separate)
- End cap · End cap with cable hole
Other
- Mount type
- Inside / Outside Corner
- Diffuser
- Diffused
- Material
- Aluminum
Downloads
