Baseboard Aluminum LED Channel 9.8 × 42 mm — 8.20 ft (2.5 m)

Baseboard Aluminum LED Channel 9.8 × 42 mm — 8.20 ft (2.5 m) · Silver Anodized

SKU AC-BB-08-9842-S

Baseboard aluminum channel, 9.8 × 42 mm. Takes LED strip up to 8 mm wide.

Rating

IP20

Mount

Baseboard

Diffuser

Diffused

Length

8.20 ft (2.5 m)

Finish

Cover: PC Diffuser (white)

Quantity

Pricing

Price on request

Collect every SKU for the job in your project list and send it as one request — we reply within one business day with pricing and lead time.

Accessories for this channel

Beyond what is in the box. Added to your project list against AC-BB-08-9842-S (Silver Anodized); we confirm part numbers with the quote.

Specifications

Technical Detail

Reading the SKU

Physical

Build

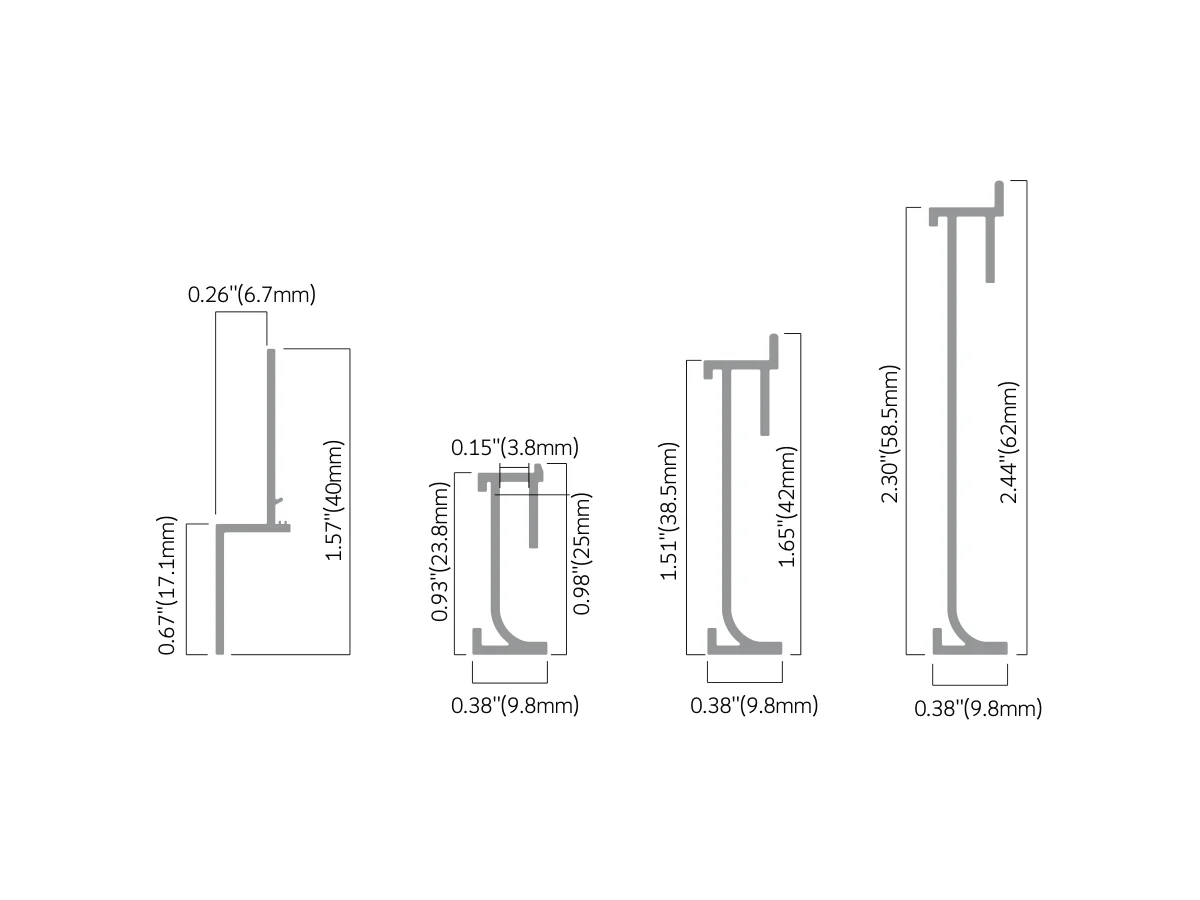

Cross-section (W × H): 9.8 × 42 mm (0.39 in × 1.65 in)
Fits: LED strip up to 8 mm (0.31 in) wide
Alloy: 6063-T5 aluminum
Finishes: Silver Anodized · Black
Cover: PC Diffuser (white)
Accessories (separate): End cap · 180° straight connector · 90° inside corner connector · 90° outside corner connector
