LED Channels · Baseboard

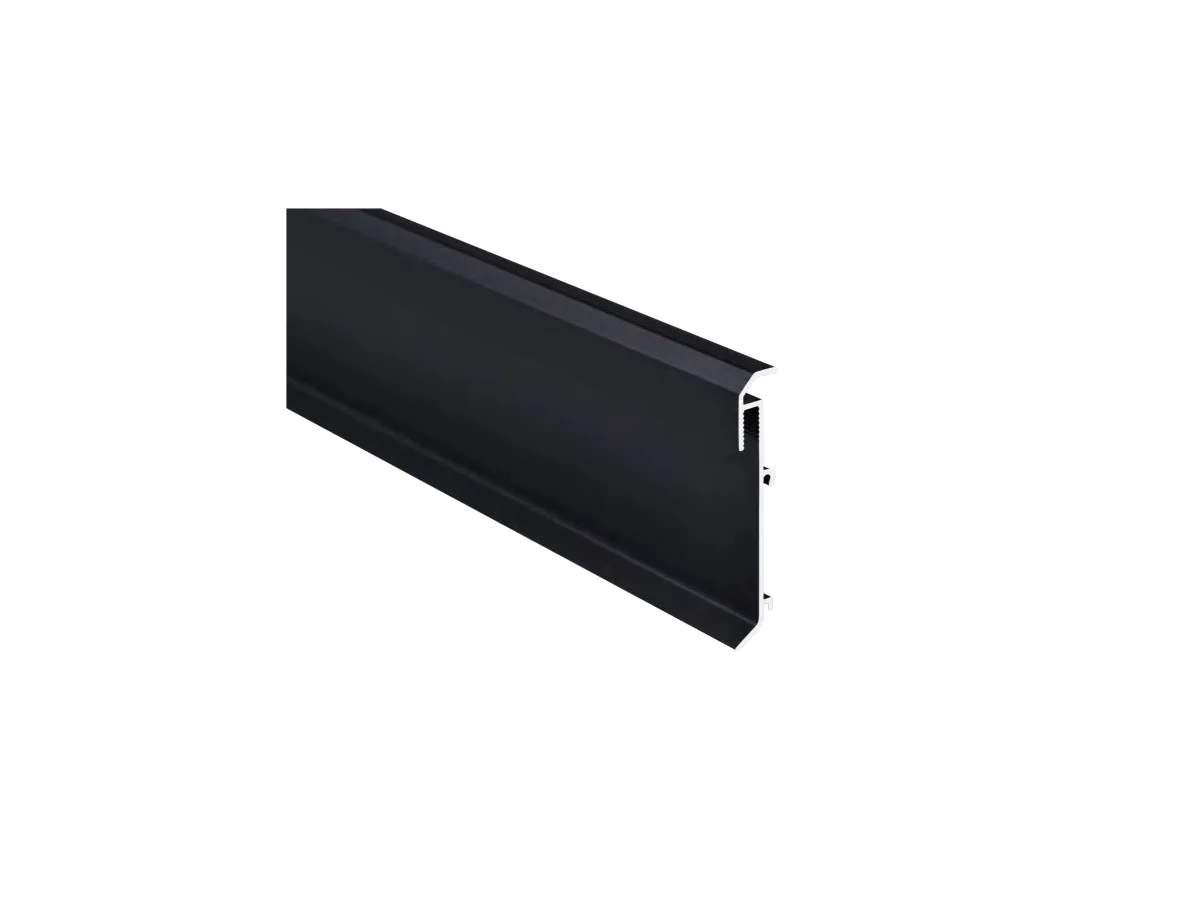

Baseboard Aluminum LED Channel 11 × 60 mm — 8.20 ft (2.5 m)
Baseboard Aluminum LED Channel 11 × 60 mm — 8.20 ft (2.5 m) · Black
SKU AC-BB-04-1160-B
Baseboard aluminum channel, 11 × 60 mm. Takes LED strip up to 4 mm wide.
Rating
IP20
Mount
Baseboard
Diffuser
Silicone
Length
8.20 ft (2.5 m)
Finish
Cover: Silicone Diffuser
Quantity
Pricing
Price on request
Collect every SKU for the job in your project list and send it as one request — we reply within one business day with pricing and lead time.
Accessories for this channel
Beyond what is in the box. Added to your project list against AC-BB-04-1160-B (Black); we confirm part numbers with the quote.
- End cap0
- Mounting clip0
- 180° straight connector0
- 90° inside corner connector0
- 90° outside corner connector0
Specifications
Technical Detail
Reading the SKU
- ACFamilyAluminum channel
- BBCategoryBaseboard Channel
- 04Strip class4 mm
- 1160ProfileCross-section W × H in mm, decimal points dropped
- BFinishBlack
Physical
- Profile length
- 8.20 ft (2.5 m)
- IP rating
- IP20
Build

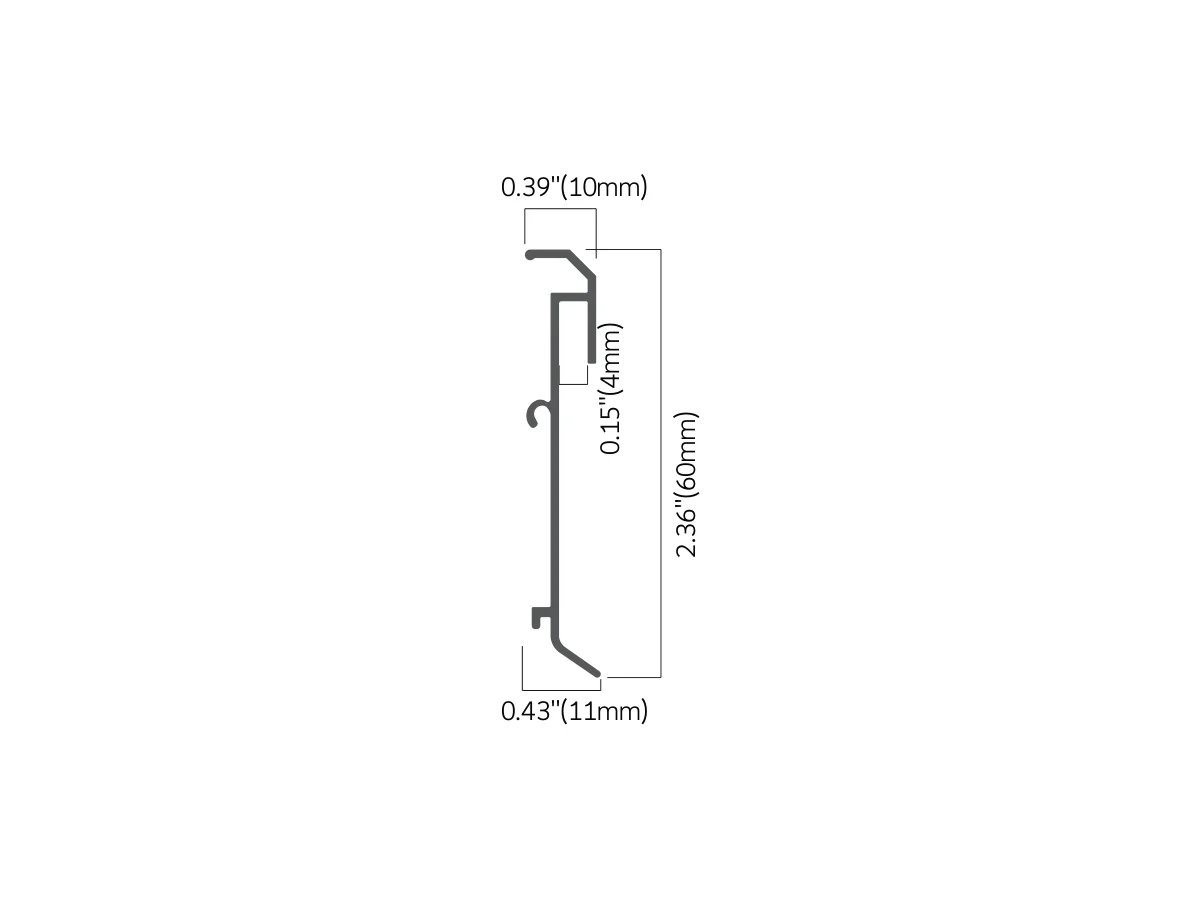

- Cross-section (W × H)
- 11 × 60 mm (0.43 in × 2.36 in)
- Fits
- LED strip up to 4 mm (0.16 in) wide
- Alloy
- 6063-T5 aluminum
- Finishes
- Black
- Cover
- Silicone Diffuser
- Accessories (separate)
- End cap · Mounting clip · 180° straight connector · 90° inside corner connector · 90° outside corner connector
Other
- Mount type
- Baseboard
- Diffuser
- Silicone
- Material
- Aluminum
Downloads
