High Efficacy
The HIGH EFFICACY series and 140+ lm/W builds for energy-code-driven work.

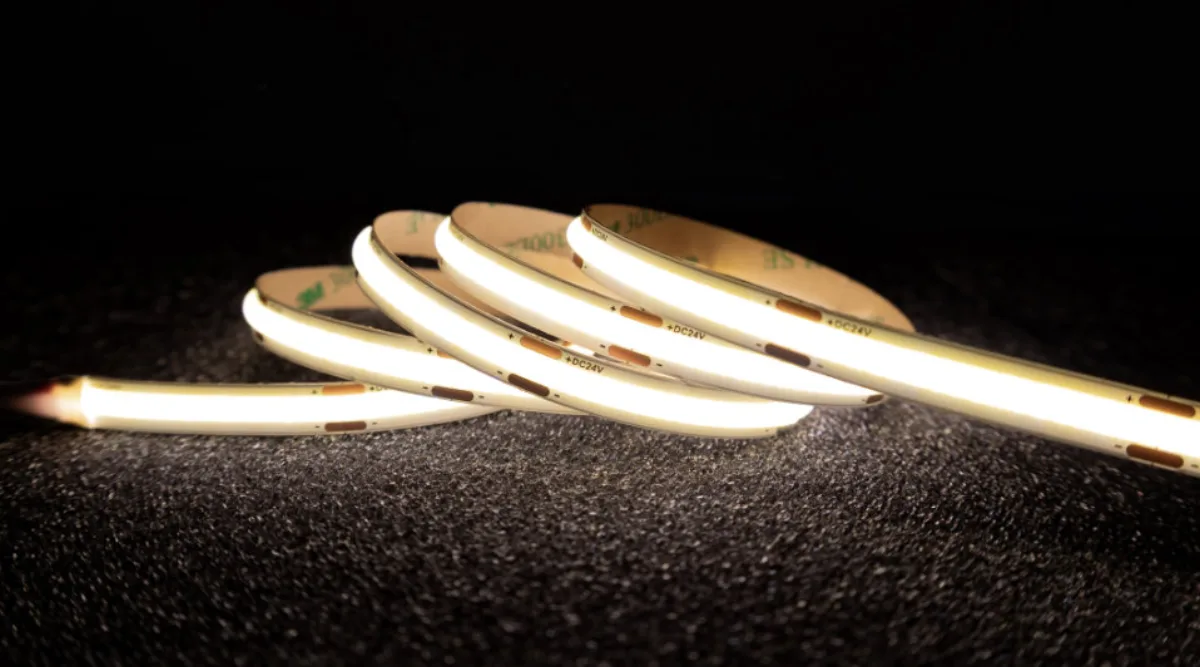

HIGH EFFICACY INDOOR COB LED Strip Static White 1.8 W/ft 24V 8 mm IP20
COB · 24V · 3000K · 283 lm/ft

HIGH EFFICACY WATERPROOF COB LED Strip Static White 1.8 W/ft 24V 8 mm IP65
COB · 24V · 3000K · 283 lm/ft

HIGH EFFICACY WATERPROOF COB LED Strip Static White 1.8 W/ft 24V 8 mm IP67
COB · 24V · 3000K · 283 lm/ft

HIGH EFFICACY INDOOR COB LED Strip Static White 3.0 W/ft 24V 8 mm IP20
COB · 24V · 3000K · 274 lm/ft

HIGH EFFICACY WATERPROOF COB LED Strip Static White 3.0 W/ft 24V 8 mm IP65
COB · 24V · 3000K · 274 lm/ft

HIGH EFFICACY WATERPROOF COB LED Strip Static White 3.0 W/ft 24V 8 mm IP67
COB · 24V · 3000K · 274 lm/ft

HIGH EFFICACY INDOOR SMD LED Strip Static White 1.5 W/ft 24V 8 mm IP20
SMD · 24V · 3000K · 226 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 1.5 W/ft 24V 8 mm IP65
SMD · 24V · 3000K · 226 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 1.5 W/ft 24V 8 mm IP67
SMD · 24V · 3000K · 226 lm/ft

HIGH EFFICACY INDOOR SMD LED Strip Static White 2.9 W/ft 24V 8 mm IP20
SMD · 24V · 3000K · 449 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.9 W/ft 24V 8 mm IP65
SMD · 24V · 3000K · 449 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.9 W/ft 24V 8 mm IP67
SMD · 24V · 3000K · 449 lm/ft

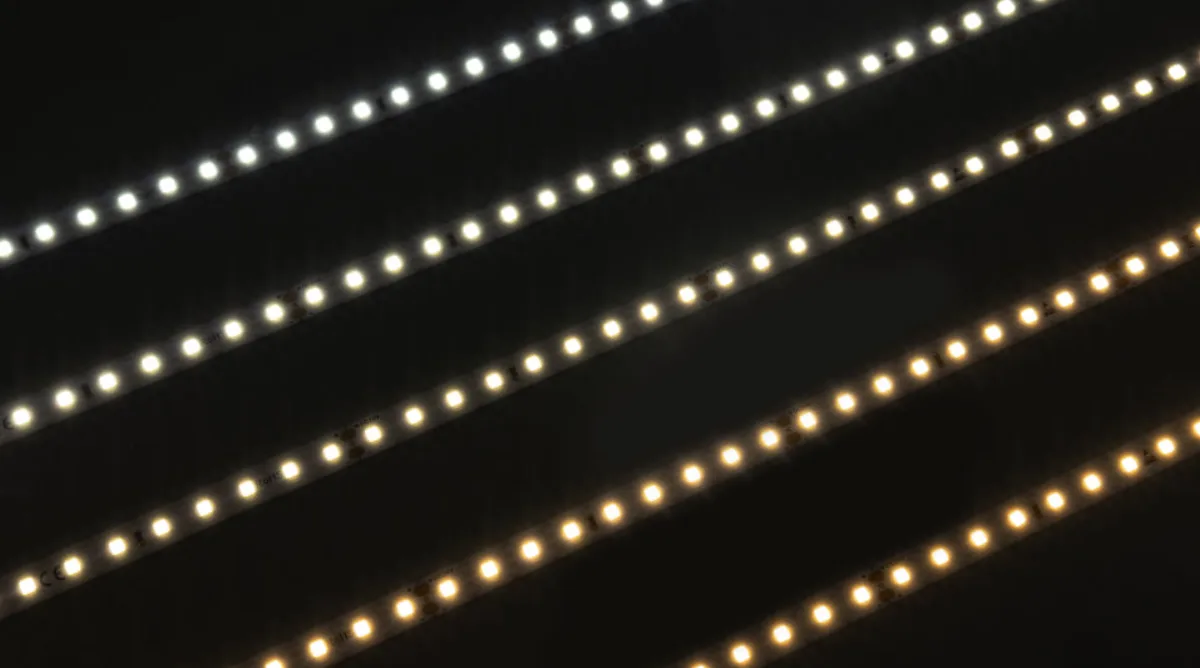

HIGH EFFICACY INDOOR SMD LED Strip Static White 1.5 W/ft 24V 10 mm IP20
SMD · 24V · 3000K · 307 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 1.5 W/ft 24V 10 mm IP65
SMD · 24V · 3000K · 307 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 1.5 W/ft 24V 10 mm IP67
SMD · 24V · 3000K · 307 lm/ft

HIGH EFFICACY INDOOR SMD LED Strip Static White 2.4 W/ft 24V 10 mm IP20
SMD · 24V · 3000K · 512 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.4 W/ft 24V 10 mm IP65
SMD · 24V · 3000K · 512 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.4 W/ft 24V 10 mm IP67
SMD · 24V · 3000K · 512 lm/ft

HIGH EFFICACY INDOOR SMD LED Strip Static White 2.6 W/ft 24V 10 mm IP20
SMD · 24V · 3000K · 313 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.6 W/ft 24V 10 mm IP65
SMD · 24V · 3000K · 313 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 2.6 W/ft 24V 10 mm IP67
SMD · 24V · 3000K · 313 lm/ft

HIGH EFFICACY INDOOR SMD LED Strip Static White 4.4 W/ft 24V 10 mm IP20
SMD · 24V · 3000K · 537 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 4.4 W/ft 24V 10 mm IP65
SMD · 24V · 3000K · 537 lm/ft

HIGH EFFICACY WATERPROOF SMD LED Strip Static White 4.4 W/ft 24V 10 mm IP67
SMD · 24V · 3000K · 537 lm/ft
Specifying for energy code
Efficacy is lumens divided by watts, and it is the figure that energy codes and lighting power density calculations are built on. A 200 lm/W strip delivers the same light as a 120 lm/W one for roughly 60% of the load, which can be the difference between a compliant design and a redesign.
It also compounds downstream. Lower load means smaller drivers, fewer circuits, less heat in the ceiling void, and a smaller contribution to cooling — the savings are not only on the lighting line of the bill.
Read the number in context. Efficacy is usually quoted at a specific drive current and ambient temperature; a strip run hot in an undersized profile will not deliver its datasheet figure, and neither will one driven at the top of its range.
